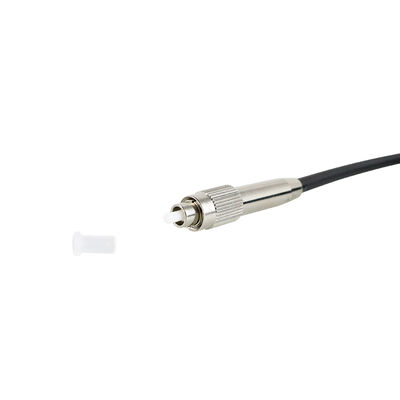

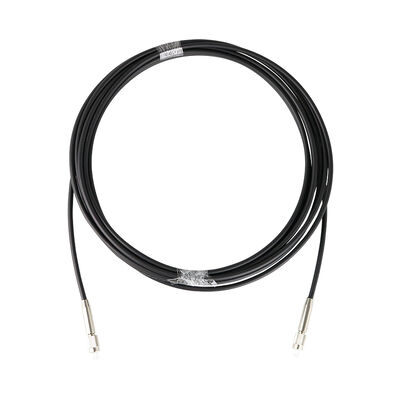

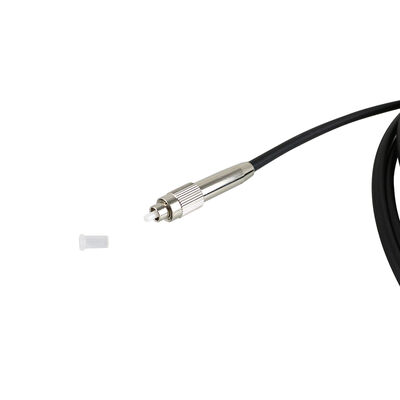

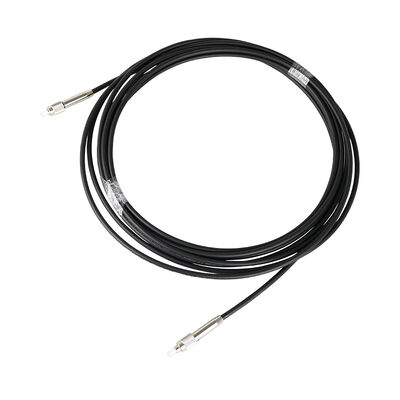

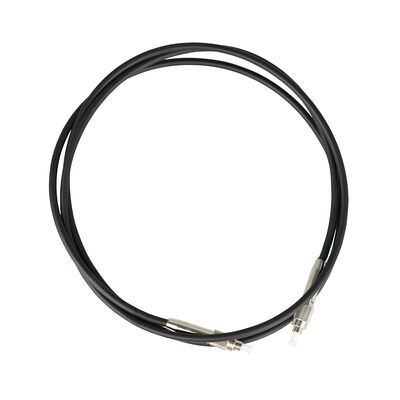

Multimode 4.8mm LSZH Black Stainless Steel armored Patch Cable with FC PC connector

Τόπος καταγωγής	Κίνα
Μάρκα	YOGEL
Πιστοποίηση	ISO9000
Αριθμό μοντέλου	4,8 χλστ
Ποσότητα παραγγελίας min	1
Τιμή	negotiate
Συσκευασία λεπτομέρειες	Κουτί από χαρτόνι
Όροι πληρωμής	L/C, D/A, T/T, Western Union, MoneyGram
Δυνατότητα προσφοράς	100 κομμάτια ανά μήνα

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

Λεπτομέρειες

Μήκος κύματος (nm)	400 nm έως 2500 nm (χαμηλό OH)	Αριθμητικό άνοιγμα (NA)	0.22±0.02
Ελάχιστη εξασθένιση (μήκος κύματος RSS)	20 dB	Κύκλος / επικάλυψη	Καθαρή πυριτίνη / πυριτίνη που περιέχει φθόριο
Και τα δύο άκρα	FC UPC	Διαθέσιμα σε μήκους	20μ

Αφήστε ένα μήνυμα

Περιγραφή προϊόντων

Multimode 4.8mm LSZH Black Stainless Steel armored Patch Cable with FC PC connector

Multimode fiber optic patch cord: are designed for shorter distance transmission. They have a larger core diameter (typically 50 or 62.5 microns) compared to single mode patch cord. Multimode fiber jumper are often utilized in LAN (Local Area Network) environments, campus networks, and short-distance communications within buildings.

Feature:

Numerical Apertures from 0.10 to 0.50 - Compatible with majority of fiber-coupled, diode-laser packages
Cables Available for Wavelengths from 190 nm to 2500 nm
Available in Lengths up to 20m*
SMA905 Connectors on Both Ends
Ø0.9 mm, Ø2.0 mm, Ø3.0 mm,Ø4.8 mm,, Ø5.0 mm, or 6.0mm Outer Jacket available (12-color options)
Custom Cables Available

*We have some Ø3.0mm & Ø2.0mm specialty cables in store, so no need to insert bare fiber into the tubing, thus any length will be available. Please contact us for details.

Application:

Spectroscopy
Illumination
Power/Beam Delivery
LED Energy Transmission
Medical Instruments
Optogenetics
Fiber coupled diode lasers
Couplers and pump combiners

Coherent Multi-Mode Fibers: (Only list part of this series)

Model No.	Core Diameter	NA	Cladding Diameter	Coating Diameter	Wavelength Range	OH Level
MM-S105/125-12A	105.0 ± 3.0 μm	0.120 ± 0.020	125.0 ± 2.0 μm	245.0 ± 15.0 μm	800 – 1600 nm	Low
MM-S105/125-15A	105.0 ± 3.0 μm	0.150 ± 0.020	125.0 ± 2.0 μm	245.0 ± 15.0 μm	800 – 1600 nm	Low
MM-S105/125-22A	105.0 ± 3.0 μm	0.220 ± 0.020	125.0 ± 2.0 μm	245.0 ± 15.0 μm	800 – 1600 nm	Low
MM-S200/220-12A	200.0 ± 4.0 μm	0.120 ± 0.020	220.0 ± 3.0 μm	320.0 ± 15.0 μm	800 – 1600 nm	Low
MM-S200/220-22A	200.0 ± 4.0 μm	0.220 ± 0.020	220.0 ± 3.0 μm	320.0 ± 15.0 μm	800 – 1600 nm	Low
MM-S200/240-22A	200.0 ± 4.0 μm	0.220 ± 0.020	220.0 ± 3.0 μm	320.0 ± 15.0 μm	800 – 1600 nm	Low
MM-S400/440-22A	400.0 ± 9.0 μm	0.220 ± 0.020	440.0 ± 8.0 μm	625.0 ± 25.0 μm	800 – 1600 nm	Low
MM-S600/660-22FA 1362303	600.0 ± 12.0 μm	0.220 ± 0.020	660.0 ± 12.0 μm	875.0 ± 30.0 μm	700 – 2200 nm	Low

Coherent NuBEAM series Beam Delivery Fibers: (Only list part of this series)

Model No.	Core Diameter	NA	Second Cladding Diameter	Second Buffer Diameter	Wavelength Range	OH Level
BD-S50/70/360-STN	51.0 ± 1.0 μm	0.220 ± 0.020	367.5 ± 7.5 μm	650 ± 32 μm	800 – 2100 nm	Low
BD-S100/130/480-STN	102.00 ± 2.00 μm	0.220 ± 0.020	490 ± 10 μm	750 ± 37 μm	800 – 2100 nm	Low
BD-S150/180/660-STN	153.00 ± 3.00 μm	0.220 ± 0.020	673 ± 13 μm	1100 ± 55 μm	700 – 2200 nm	Low
BD-S200/220/360-STN	204.0 ± 4.0 μm	0.220 ± 0.020	367.5 ± 7.5 μm	650 ± 32 μm	800 – 2100 nm	Low
BD-S300/330/360-STN	306.0 ± 6.0 μm	0.220 ± 0.020	367.5 ± 7.5 μm	650 ± 33 μm	800 – 2100 nm	Low
BD-S400/440/660-STN	408.0 ± 8.0 μm	0.220 ± 0.020	672.5 ± 12.5 μm	1100 ± 55 μm	800 – 2100 nm	Low
BD-S600/660/720-STN	612.00 ± 12.00 μm	0.220 ± 0.020	735 ± 15 μm	1100 ± 55 μm	700 – 2200 nm	Low
BD-S1000/1100-STN	1020.0 ± 20.0 μm	0.220 ± 0.020	N/A	1400 ± 70 μm	800 – 2100 nm	Low

Ordering Information:

Connector End A-Connector End B, Connector Type
Fiber Type: Wavelength Range, Core/Cladding Diameter, Core NA, Coating Diameter, Coating Material, Attenuation Plot, etc.
Furcation Tubing Type
Cable Length
